Hot sale in India 0.2m-12m height Rotary Manipulator
|Unit Price:||7000~28000 USD|
|Min. Order:||1 Set/Sets|
|Packaging:||Hot sale MIG TIG SAW automatic column and boom welding machine normally packaged by exporting wooden case or naked package put into 20ft, 40ft, 40HQ shipping containers or bulk cargo. Customized package is available to meet clients'special requirements.|
|Supply Ability:||20000 Set/Sets per Year|
Hot sale in India 0.2m-12m height Rotary Manipulator
Product description for Hot sale MIG TIG SAW automatic column and boom welding machine:
Welding manipulator also called as column and boom welding machine which combine with welding rotator and welding positioner to become the dedicated automatic welding device for welding structure parts’ internal and external circular seam, fillet weld, inside and outside longitudinal seam and has different structure forms such as fixed type, rotary type, versatile position type, etc.
And according to user’s requirements, we also can choose structure or equipped with different kinds of welding machines and adding tracking, swing, monitoring, solder recycling& conveying functions. The welding manipulator is widely used for many kinds of industries such as pressure vessel, cooling device, power plant construction, metallurgical construction, engineering machinery, shipbuilding, roll surfacing welding, petrochemical construction, etc.
Advantages and Features for Hot sale MIG TIG SAW automatic column and boom welding machine:
1. Column and beam with steel profile structure, planar guide rail design, which has good rigidity and low structural deflection.
2. Beam’s lifting with AC motor constant speed operation, steady lifting with constant speed.
3. Beam’s stretch with AC variable frequency stepless speed regulation, constant torque output, steady speed, guide rail is 45# steel, stress reduction treatment after welding, plane forming, high intensity, good stability and guarantee no deformation long time.
4. Beam’s stretch with gear and rack transmission, high transmission accuracy, steady operation, speed digital display and can be preset.
5. Beam’s lifting, beam’s stretch, trolley advance and retreat all equipped with electrical and mechanical double protection device.
6. Adopt high quality slewing bearing, flexible rotation, long lifespan.
7. Adopt plastic towing wiring technology, durable, convenient, beautiful and safe.
Control station and hand operator form remote control method, adopt computer control technology, all welding parameters digital display and can be preset, flexible operation and control station reserved linkage interface which can be interconnected with other products. Hand controller in your hand can make remote control easily for welding manipulator, welding center and other structure, and make real-time control for welding process.

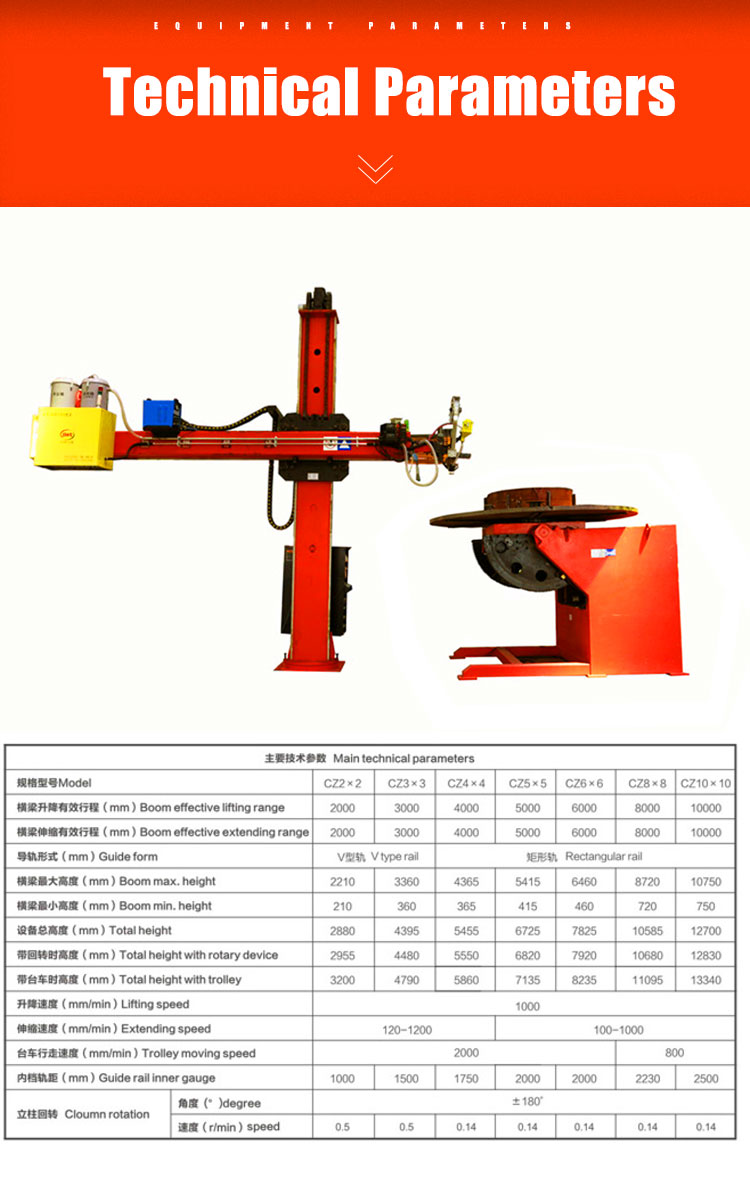

Main technical parameters for Hot sale MIG TIG SAW automatic column and boom welding machine:
|Welding manipulator/Welding column&boom main parameters|
|Boom effective lifting range(mm)||2000||3000||4000||5000||6000||8000||10000|
|Boom effective extanding range(mm)||2000||3000||4000||5000||6000||8000||10000|
|Guide rail form||V type rail||Rectangular rail|
|Boom max. height(mm)||2210||3360||4365||5415||6460||8720||10750|
|Total height with rotary device(mm)||2955||4480||5550||6820||7920||10680||12830|
|Total height with trolley(mm)||3200||4790||5860||7135||8235||11095||13340|
|Trolley moving speed(mm/min)||2000||800|
|Guide rail inner gauge(mm)||1000||1500||1750||2000||2000||2230||2500|
Notice: customized welding column boom is available according to clients' requirement.

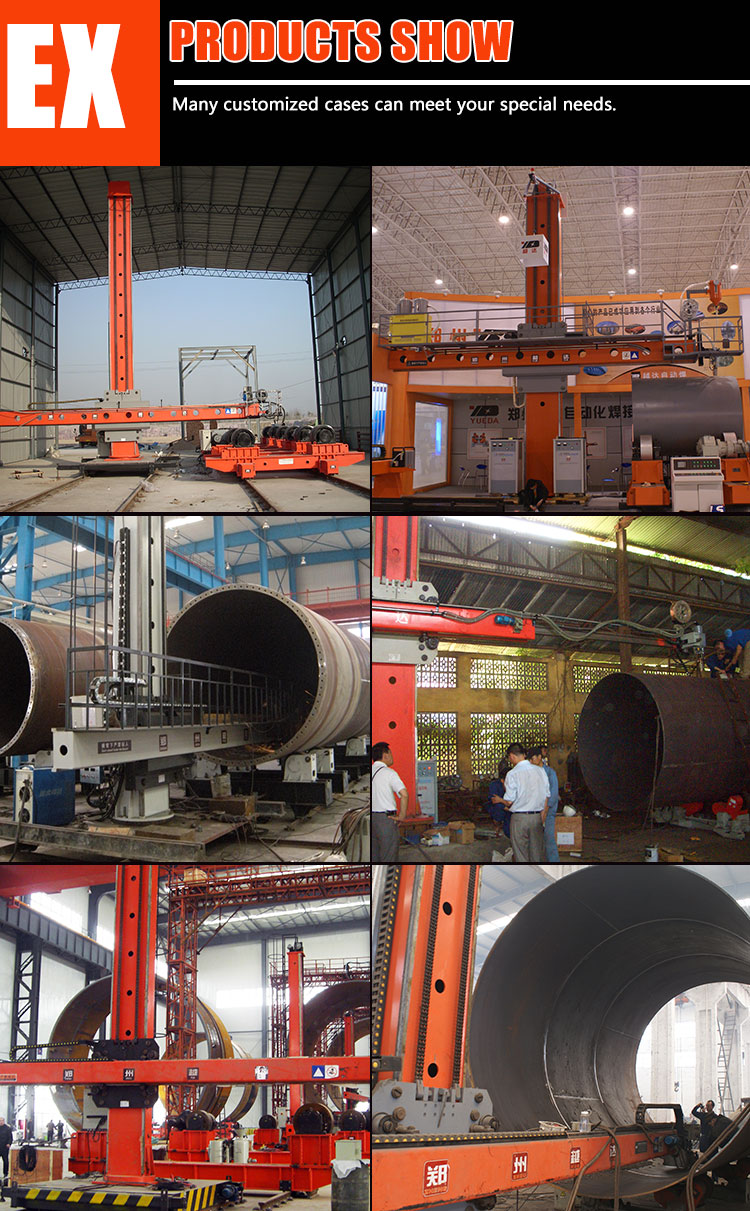

Welding clumn and boom welding manipulator production picture for reference:
